1 예제

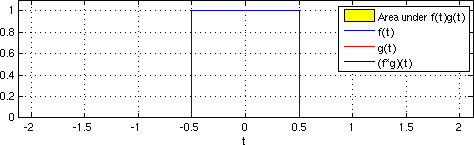

2 이해를 위한 gif

3 참고자료

u <- c(1,2,3,4)
v <- c(10,20,30)
convolve(u,rev(v), type="open")

> convolve(u,rev(v), type="open")
[1]  10  40 100 160 170 120

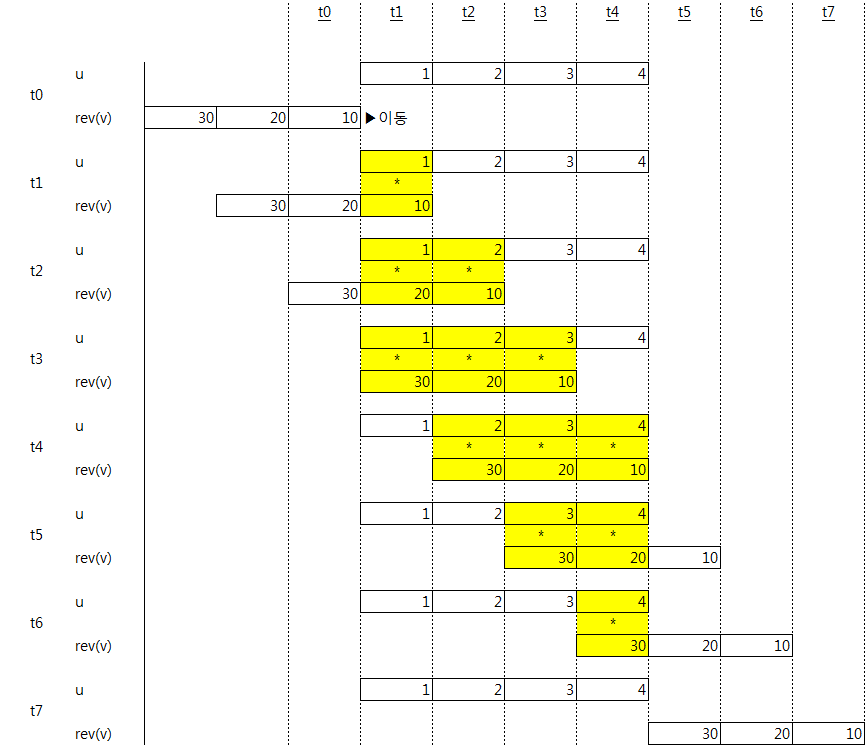

• t1 = 1 * 10 = 10

• t2 = 1 * 20 + 2 * 10 = 40

• t3 = 1 * 30 + 2 * 20 + 3 * 10 = 100

• t4 = 2 * 30 + 3 * 20 + 4 * 10 = 160

• t5 = 3 * 30 + 4 * 20 = 170

• t6 = 4 * 30 = 120



• http://trip2ee.tistory.com/101

• http://pinkwink.kr/156

• http://www.ktword.co.kr/abbr_view.php?nav=2&m_temp1=5254&id=1109

• http://m.blog.naver.com/tnalsdl326/220149887901
